材質；S45C，表面染黑皮膜處理
熱處理硬度: HRC32±5°

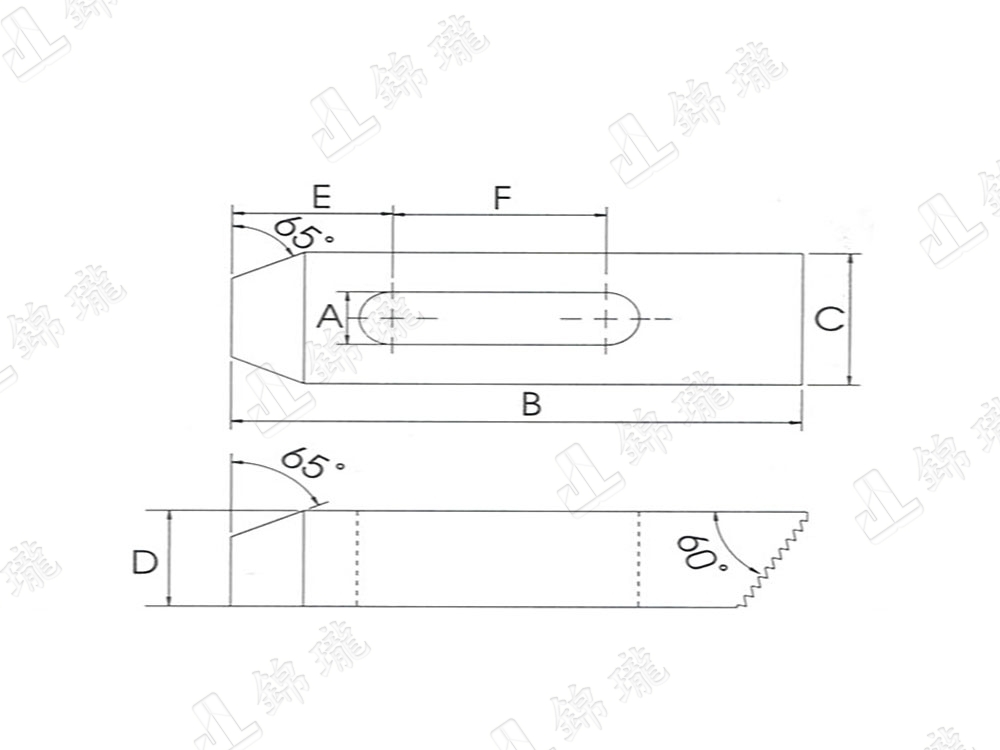

| 齒型壓板 | |||||||||
| NO | Model | A | B | C | D | E | F | Inch | Metric |
| SC-63031 | 3/8(S) | 11 | 65 | 25.4 | 12.7 | 23 | 19 | 3/8 | M10 |
| SC-63032 | 3/8(M) | 11 | 100 | 26 | 15 | 35 | 30 | ||
| SC-63033 | 3/8(L) | 11 | 150 | 28.5 | 19 | 48 | 54 | ||
| SC-64041 | 1/2(S) | 15 | 65 | 30 | 13 | 25.5 | 16 | 1/2 | M12-M14 |
| SC-64042 | 1/2(M) | 15 | 100 | 32 | 19 | 34.5 | 31 | ||
| SC-64043 | 1/2(L) | 15 | 150 | 32 | 22 | 47.5 | 55 | ||
| SC-65051 | 5/8(S) | 18 | 65 | 32 | 16 | 25.5 | 14 | 5/8 | M16 |
| SC-65052 | 5/8(M) | 18 | 100 | 38 | 19 | 35 | 30 | ||
| SC-65053 | 5/8(L) | 18 | 150 | 38 | 22 | 46.5 | 57 | ||
| SC-66061 | 3/4(S) | 21 | 100 | 38 | 19 | 35 | 30 | 3/8 | M18-M20 |
| SC-66062 | 3/4(M) | 21 | 150 | 38 | 25 | 50 | 50 | ||
| SC-66063 | 3/4(L) | 21 | 200 | 44.5 | 28.5 | 65 | 70 | ||
| SC-68081 | 1(S) | 26 | 150 | 49 | 32 | 55.5 | 39 | 7/8-1 | M22.M24 |
| SC-68082 | 1(M) | 26 | 200 | 49 | 38 | 65.5 | 69 | ||
| SC-68083 | 1(L) | 26 | 250 | 49 | 38 | 88 | 74 | ||
